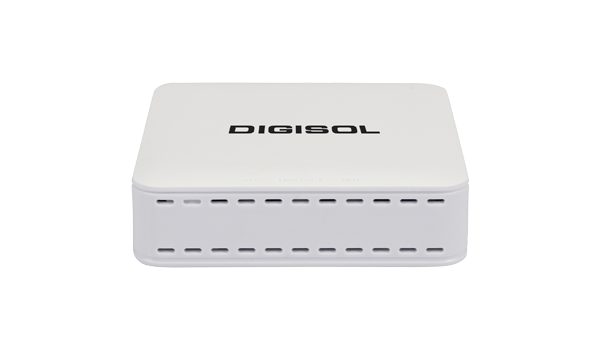

DG-GR6010
DIGISOL XPON ONU ROUTER WITH 1 PON
& 1 GIGABIT LAN PORT
Product Key Features
- Dual Mode ONU technology (GPON/GEPON)
- Features auto-detecting, auto-configuration,
and auto firmware upgrade etc. - Integrated OAM remote configuration
and maintenance function - Support NAT, Firewall function
- Support DHCP/ Static/ PPPoE mode
WAN connections - Support IGMP Snooping
- Support DHCP/ Static/ PPPoE mode
WAN connections - Plug and Play
- 3 Years Warranty
XPON ONU
Product Specifications
- 1 XPON port (EPON PX20+ and GPON Class B+)
- Wavelength : TX 1310nm and RX 1490nm
- SC/UPC Connector
- Receiving Saturation : >= -8 dBm
- Receiving Sensitivity : <= -28 dBm
- Transmitting Optical Power : 0 to 4 dBm
- Transmitting Distance : 20 Km
- 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces
- Full/Half Duplex, RJ45 connector
- Support 4 queues
- Support SP and WRR
- Support 802.1P
- Support DSCP
- 3, For SYS, LINK/ACT, REG
- Support MPCP discover & register
- Support authentication Mac/Loid/ Mac+Loid
- Support Triple Churning
- Support DBA bandwidth
- Support auto-detecting, auto-configuration and auto firmware upgrade
- Support authentication SN/Psw/ Loid/Loid+Psw
- Support Dying Gasp
- Support Port Loop Detect
- Support Eth Port Los
- Support VLAN tag mode
- Support VLAN transparent mode
- Support VLAN trunk mode (max 8 vlans)
- Support VLAN 1:1 translation mode
(max 8 vlans)
- Support IGMPv1/v2
- Support IGMP Snooping
- Max Multicast vlan 8
- Max Multicast Group 64
