RH804G-GP
XPON 4 PORTS GE PoE+ ONT
Product Overview
RH804G-GP ONU is designed for fulfilling FTTH and triple play service demand of fixed network operators or system integrator. The ONT is based on the mature Gigabit GPON technology, Support POE+ function, meet the 802.11af standard. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And It is fully compliant with technical regulations such as ITU-T G.984.x.
Technical Specifications
- Dimension – 190mm*105mm*26mm
- Net weight – 1.5kg
- Typical power consumption – <167.4W
- Noise – None
- Cooling style – Naturally cooling
- Power supply – DC 54V/3.1A
- Installation style – Support PC, wall mount or put
inside of information box. - Environment – 0 ~55 C
- Atmospheric pressure – 70~106Kpa
- MTBF – 50,000hours
- MTTR – 30minutes
- Connector style – Default SC/PC (SC/APC is
optional) - PON quantity – 1
- Fiber style – Single mode
- Wavelength – Tx : 1310 +/-20nm
Rx : 1490 +/-10nm - PON interface standard – ITU-T G.984.2/ITU-T
G.984.3/ITU-TG.988 Class B+ - PON interface receiving rate – 1.244Gpbs
- PON interface transmitting rate – 2.488Gpbs
- Output optical power – Min: 0dBm Max: +5dBm
- Optical receiver sensitivity – -8dBm————28dBm
- The length of the optical link – Max 20km
RH804G-GP

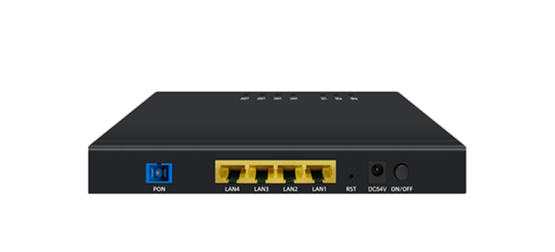

Hardware Features
- PON port : Connect PON port with internet by SC type,
single mode optical fiber cable - Ethernet port : RJ45 Port connects to local internet,
speed 10/100/1000Mbps - Reset button (Reset) : Press down reset button and keep 1-5 seconds to
make the device restart and recover
from the factory default Settings. - POWER : DC 54V/3.1A
- Power turn on/off : Power turn on/off
- POWER : Light on – ONU power supply normally
Light off – ONU no power supply - PON : Light on – ONU link active
Flash – ONU manage to link
Light off – ONU receiving power rate lower than optical
receiver sensitivity - Loss of Signal(LOS) : Blink – Device does not receive optical signals.
off – Device has received optical signal. - LAN 1 – LAN 4 : Light – on network port linked, but no data transmitting
Flash – network port data pass
Light off – ONU no power supply or internet cable unlink
