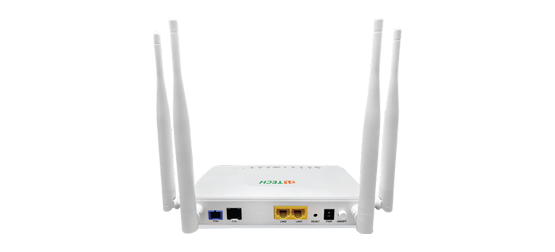

RH821GWV

xPON ONT

Product Overview

RH821GWV terminal devices are designed for fulfilling FTTH and
triple play service demand of fixed network operators or cable
operators. The box is based on the mature Gigabit GPON technology, which have high ratio of performance to price, and the technology of 802.11 n/ac WiFi , Wireless power
can reach more than 23dBm, Support for USB2.0 extension
devices and high quality VoIP as well. They are
highly reliable and easy to maintain, with guaranteed
QoS for different service. And It is fully compliant
with technical regulations such as ITU-T G.984.x

ENQUIRE NOW

xPON ONT

Key Feature Support on RL821GWV

GPON Features

• Compliant with ITU-T G.984 GPON standard
• FEC (Forward Error Correction) in both upstream and downstream
• QoS scheduling based on SP or WRR between GEM port and T-CONT
• Downstream multicast GEM port and broadcast GEM port

Ethernet Feature

• Support Auto-speed and MDI/MDIX auto detection
• Internal L2 switch
• Advanced data processing function,Such as VLAN label processing, flow classification

Gateway Feature

• WAN support Router and Bridge mode
• Router mode supports PPPoE/DHCP/ static IP
• WAN support Internet, VoIP, IPTV, TR069
• LAN supports DHCP and static IP
• Support NAT and NAPT

VoIP Feature

• Support SIP (RFC3261) or MEGACO v2 (H.248)
• Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-negotiate with call agent
• Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length

WIFI Feature

• 300 Mbps on 2.4 GHz
• IEEE 802.11 n/g/b/a wireless LAN
• 2.4 GHz band: 2400 – 2483.5 MHz
• WEP、WPA-PSK、WPA2-PSK and other encryption

OAM Feature

• Standard OMCI (the embedded operations channel)compliant with ITU-T G.988
• Compliant with TR-069 standard
• Compliant with TR-098, TR-140 terminal integrated management interface
• Alarm reporting, performance monitoring

Product Specification

Dimension

• 107mm×85mm×26mm（L×W×H ）

Net weight

• 0.26kg

Typical power consumption

• <7W

Noise

• None

Cooling style

• Naturally cooling

Power supply

• 12V DC By external AC/DC adapter）

Installation style

• Support PC, wall mount or put inside of information box

Environment

• 0~45°C

Atmospheric pressure

• 70~106Kpa

MTBF

• 50,000hours@25°C

MTTR

• 30minutes

Key Benefits

Dimension

• ITUG.984 GPON compliant
• Voice Protocol: SIP and H.248
• Multiple Interfaces: 1GE,1FE,1POTS, WIFI
• Multiple Management Options
• Compatible with third-party OLT Vendor
