RL802GW-DG

xPON ONT

Product Overview

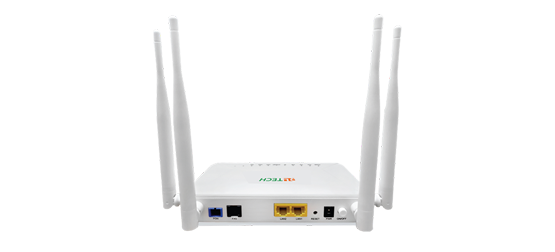

RL802GW-DG terminal devices are designed for fulfilling FTTH and
triple play service demand of fixed network operators or cable
operators. The box is based on the mature Gigabit GPON technology, which have high ratio of performance to price, and the technology of 802.11 n/ac WiFi , Wireless power
can reach more than 23dBm, Support for USB2.0 extension
devices. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And It is fully compliant
with technical regulations such as ITU-T G.984.x

ENQUIRE NOW

xPON ONT

Interface of device

Connector style

• SC/APC OR SC/UPC

PON quantity

• 1

Fiber style

• Single mode

Wavelength

• TX：1310 +/-20nm RX：1490 +/-10nm

PON interface standard

• ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+

PON interface receiving rate

• 2.488Gpbs

PON interface transmitting rate

• 1.244Gpbs

Output optical power

• Min: 0.5dBm | Max: +5dBm

Optical receiver sensitivity

• Precede -29dBm

The length of the optical link

• Max 20km

Specification and Working Environment

Dimension

• 195mm×120mm×50mm（L×W×H）

Net weight

• 0.3kg

Typical power consumption

• <10W

Noise

• None

Cooling style

• Naturally cooling

Power supply

• 12V, 1.5Amp

Installation style

• Desktop or put inside the information box

Environment

• 5~50°C

Atmospheric pressure

• 70~106Kpa

MTBF

• 50,000hours@25°C

MTTR

• 30minutes

Parameter

• Nominal

Special function

Special function

•Support TR069,NAT,DMZ,DNS features
• Support Multiple ssid
• Support Multiple VLAN
• Support CAS,L2oGRE
• Support IPV6
• PPPoE
• DHCP and Static IP configuration for WAN Interface
• Support IP
• MAC filtering, Firewall Functionality in routed mode
• Support for XPON
• Adaptive EPON or GPON OLT on the network

WIFI Specifications

Frequency

• 2412~2472MHz
• 5GHz：
• Band-1 frequency 5.15GHz～5.25GHz
• Band-2 frequency 5.25GHz～5.35GHz
• Band-3 frequency 5.500GHz～5.700GHz
• Band-4 frequency 5.725GHz～5.825GHz

Transmission speed

2.4GHz Frequency
• IEEE 802.11b ：11/5.5/2/1M(Auto)
• IEEE 802.11g：54/48/36/24/18/12/9/6(Auto)
• IEEE 802.11n：270/243/216/162/108/81/54/27Mbps, up to 300Mbps

5GHz Frequency

• IEEE 802.11n：Highest transmission speed up to 300Mbps
• IEEE 802.11ac ：Highest transmission speed up to 867Mbps

Channel number

• 2.4GHz：13 | 5GHz：4

Spread-spectrum Technique

• DSSS(Direct sequence spread spectrum)

Data Modulation

• DBPSK, DQPSK, CCK and OFDM(BPSK/QPSK/16-QAM/64- QAM)

Sensitivity @PER (Packet Error Rate)

• 270M：-68dBm@10% PER；130M： -68dBm@10% PER
• 108M：-68dBm@10% PER；54M：-68dBm@10% PER
• 11M：-85dBm@8% PER；6M：-88dBm@10% PER
• 1M：-90dBm@8% PER

Transmission Distance

• Indoor Maximum 120 meter, Outdoor Maximum 360 meters (The distance depends on the environment

RF power (2.4GHz)

• 20dBm EIRP

RF power (5 GHz)

• Band-1 EIRP 17.45dBm
• Band-1 EIRP 17.45dBm
• Band-2 EIRP 17.82dBm
• Band-3 EIRP 17.92dBm
• Band-4 EIRP 18.92dBm

Antenna

• 5dBi Antennas

Hardware Specification

WAN/PON

• One Giga optical interface (SC/APC)

LAN

• Two 10/100/1000 Mbps Ethernet RJ-45 ports

USB

• One USB 2.0 hosts

WPS button

• A tact switch

Reset

• A tact switch. One reset/restore factory default button

Power button

• Power on/off switch

Power supply

• DC 12V/1.5A
